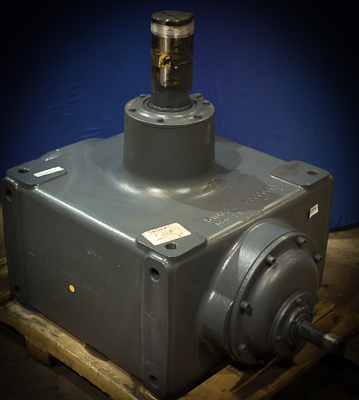

Falk 5DTC Speed Reducers


Falk DTC reducers are designed specifically for conveyor applications. Oversize alloy steel shafts combined with widely spaced anti-friction bearings rugged housings provide for high overhung load.

Versatile design allows easy speed changes through interchangeable high speed gear heads and quick replacement change gearsets.

The 5DTC gear reducer can be mounted in four positions. This allows the output shaft to be directed up, to the right or left and down. The housing is thick walled cast iron with oil tight construction. Dry well construction reduces leakage concerns when the output shaft is downward facing. Of course the gearing is Falk precision gearing that has made them one of the most popular reducers in the world and are popular in automotive plants all over North America.

5DTC3 Ratios
  • 42.69-1
  • 51.76-1
  • 63.30-1
  • 79.84-1
  • 95.04-1
  • 96.84-1
  • 115.2-1
  • 140.9-1
  • 177.1-1
  • 215.3-1
  • 261.3-1
5DTC4 Ratios
  • 264.1-1
  • 320.2-1
  • 391.7-1
  • 492.3-1
  • 599.2-1
  • 587.9-1
  • 712.8-1
  • 726.5-1
  • 871.7-1
  • 1096-1
  • 1334-1
  • 1617-1
5DTC5 Ratios
  • 1638-1
  • 1986-1
  • 2428-1
  • 3052-1
  • 3645-1
  • 3715-1
  • 4505-1
  • 4419-1
  • 5405-1
  • 6793-1
  • 8269-1
  • 10026-1

I need my 5DTC repaired or over-hauled.

B&H is one of the few rebuilders that stock the Falk 3DTC and 5DTC gear reducers and parts.  Having stock means you get your gear reducer back sooner.  We also utilize authentic Falk parts so you get a reducer that will perform as designed.

I need replacement parts for my 5DTC reducer.

If you need parts for your reducer, B&H can provide same-day shipping on many of the critical components.

I want a new 5DTC reducer.

Give us a call today.  We just purchased a few new units to add to our already deep supply of new and used 5DTC gear drives.



I need dimensions for a Falk 5DTC Gear Reducer.

Falk 5DTC Dimensions - PDF
